Eyelet connector BS-BATTERY PA01 MAX

Eyelet connector BS-BATTERY PA01 MAX

This connector is the ideal solution when your battery is hard to reach, hidden, or when using clamps is not possible. It provides a quick and secure way to either charge your battery with a charger or jump-start it using the Power Box MAX booster, thanks to its dual connection: an SAE plug and a dedicated Power Box Max plug.

FEATURES

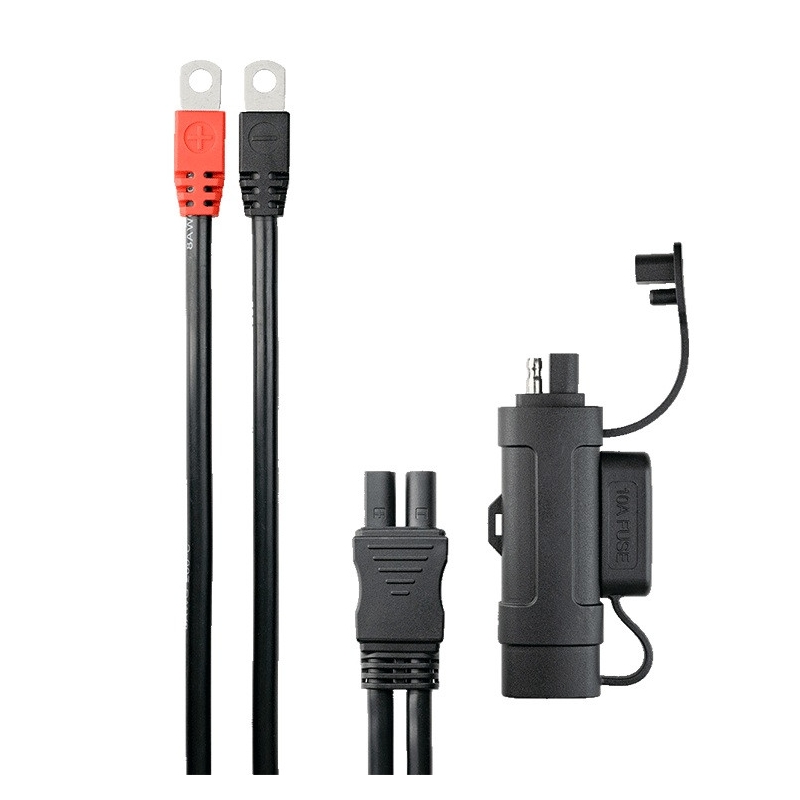

• Adapter with SAE plug connection and Power Box MAX plug.
• For all 12V vehicles and motorcycles batteries.
• M6 eyelets terminals.
• 10A Fuse.
• Wire 60 cm (8AWG).
• Safe & easy to connect.

INSTRUCTIONS
HOW TO CONNECT THE 2-IN-1 EYELET ADAPTER

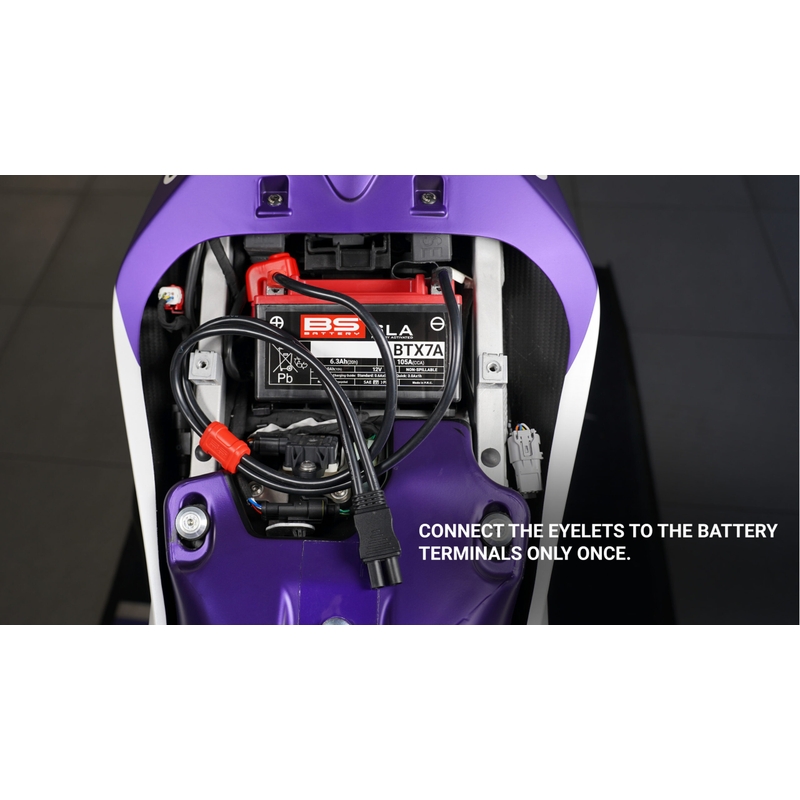

1. Connect the red eyelet to the positive battery terminal (+).
2. Connect the black eyelet to the negative battery terminal (-).

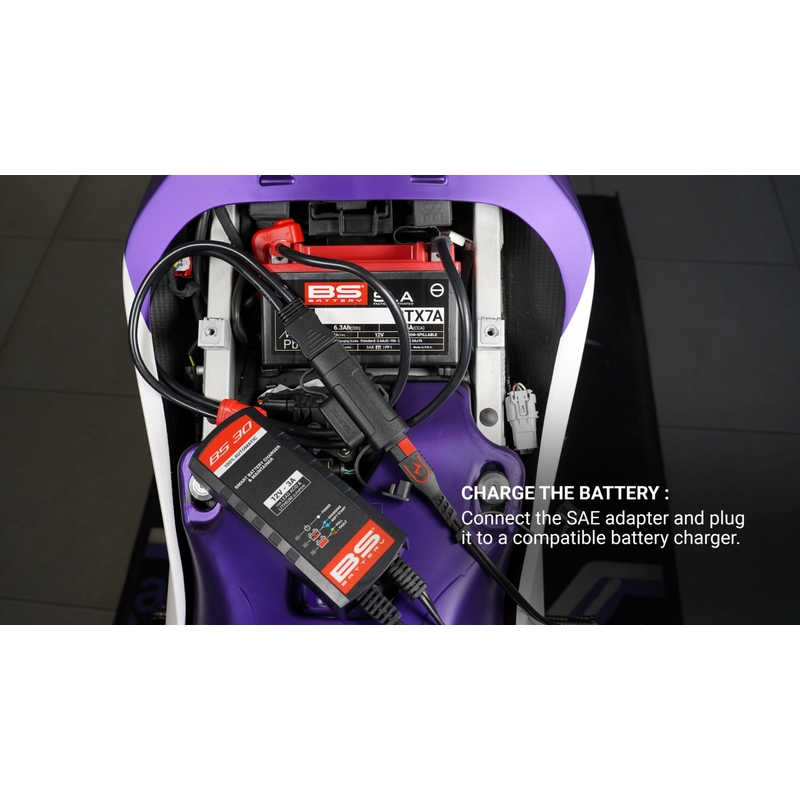

TO CHARGE THE BATTERY:

First, connect the SAE adapter on the eyelet connector.
Then plug, the other end into your compatible battery charger.

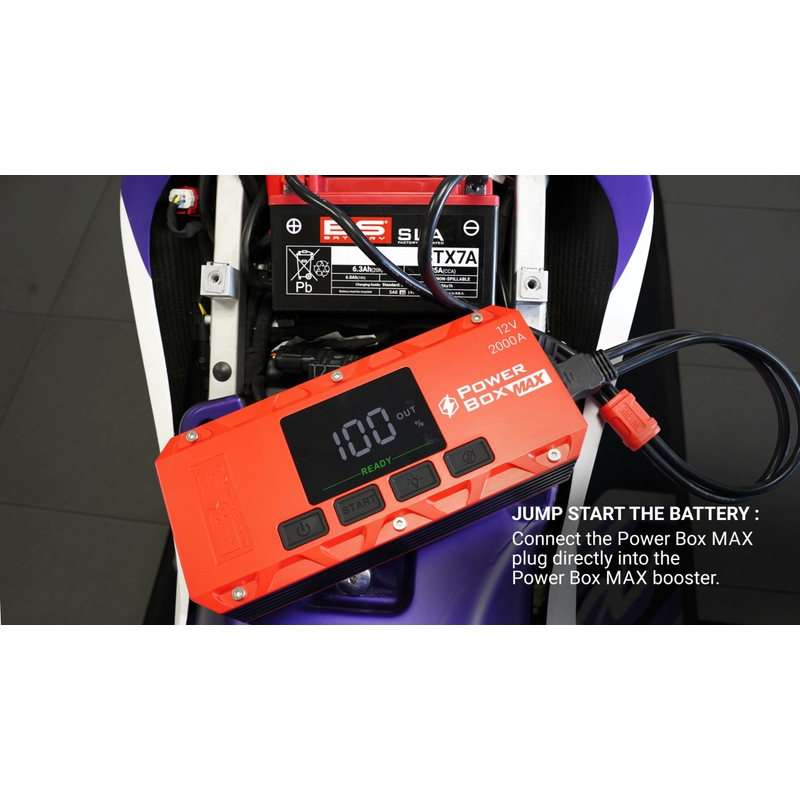

TO JUMP START THE BATTERY:

Connect the Power Box MAX plug direclty into the
Power Box MAX booster.

The PA01 MAX is specifically designed for the Power Box MAX and is only compatible with the Power Box MAX (not compatible with the Power Box or the Power Box AIR).
